OFFSEC JOURNAL — VADER

submitted to microsoft

MSRC portal: VULN-195458 — "Tamper Protection Bypass via Hardware Debug Registers — AMSI and ETW Defeated Without Memory Modification" — Status: Submitted

MSRC SUBMITTED The research documented in this journal led to a formal vulnerability submission to Microsoft Security Response Center. Case VULN-195458. The techniques built from scratch during this engagement were reported through responsible disclosure.

what is offsec

OFFSEC = Offensive Security. The red team side of cybersecurity — attacking systems with permission to find weaknesses before real attackers do. This journal documents a full kill chain: reconnaissance, exploitation, privilege escalation, persistence, and lateral movement on a deliberately configured test machine.

setup — why i did it this way

I had access to a colleague's work laptop (target_laptop1) with explicit permission. Rather than testing with an admin account — which would make everything trivially easy — I logged in as a standard user account to add real-world control.

The point: simulate how an attacker actually lands. A phishing link, a dodgy USB, a social engineering play — initial access almost always lands you as a standard user. If my tools only work from admin, they're not realistic.

I also deliberately set a PIN on the machine beforehand to test whether findings are reachable through a screen-locked session.

the target

recon — commands run in order

1.1 — uac configuration check

I wanted to understand UAC config before doing anything else. UAC pops those "Do you want to allow this app to make changes?" dialogs. If misconfigured, privilege escalation gets easier.

ConsentPromptBehaviorAdmin 0x5 = UAC prompts for consent on secure desktop (default). EnableLUA 0x1 = UAC enabled. Admin accounts run as standard until explicitly elevated.

Deduction: UAC is default. Not a bypass target. GaySun doesn't need to touch UAC — it bypasses it entirely by abusing Defender's SYSTEM-level file access.

1.2 — defender / edr status check

Tamper Protection is the lock on Defender itself. When ON, you can't stop Defender's services even as admin — it blocks SCM calls. When OFF (as here), those calls go through once I have SYSTEM.

CRITICAL Tamper Protection = False. The single most important finding in the recon. Once I have SYSTEM access, I can stop Defender services programmatically. My evasion binary can blind Defender. Everything after that runs clean.

1.3 — process snapshot attempt

1.4 — identity and privilege check

I am a nobody on this machine. BUILTIN\Users = standard user. No admin. Medium integrity = can't write to system directories. No SeDebugPrivilege. No SeImpersonatePrivilege.

Almost everything in my kill chain requires admin or SYSTEM. GaySun.exe (the TOCTOU escalation) is the ONLY viable path from here. Everything unlocks after that.

1.5 — system information

VBS + HVCI = the big finding I didn't expect. The CPU's hypervisor creates a protected zone that the Windows kernel itself can't touch. Every kernel driver must be Microsoft-signed. Any attack that loads an unsigned kernel driver, patches kernel memory, or uses Mimikatz-style kernel credential theft is dead.

What it DOESN'T kill: Everything my chain does is user-mode. CreateRemoteThread, DLL injection, service installation via SCM — all Win32 API calls. The hypervisor doesn't watch user-space. And user-mode App Control is OFF, so my unsigned binaries can execute.

1.6 — network state

TeamViewer: Already installed, running as a service (likely SYSTEM). Post-SYSTEM, I could extract the TeamViewer ID and set a permanent unattended password via registry — a more stable persistent backdoor than my custom VNC. It's signed and trusted. Much less suspicious than vncserver.exe.

Dropbox: Syncs to cloud. Post-SYSTEM, any file I write to the Dropbox sync folder gets automatically exfiltrated. I could use a text file as a dead-drop C2 channel — implant polls the file for commands, writes results back. All traffic looks like normal Dropbox HTTPS to a CDN.

Theory: bind shell vs reverse shell architecture — two fundamental C2 patterns

1.7 — teamviewer registry check

Always_Online = 0 means no permanent unattended password set. Post-SYSTEM, I can write SecurityPasswordAES to the registry to set a permanent password, converting TeamViewer into a persistent backdoor.

the escalation tool — gaysun.exe

This is the linchpin of the whole chain. Everything depends on it working.

GaySun.exe source: VSS shadow copy oplock sync, EICAR string stored reversed for static analysis bypass

How it works: Windows Defender runs as SYSTEM — it can write files anywhere, including C:\Windows\System32. I, as a standard user, cannot. The trick: make Defender write MY file into System32 for me.

1. Write an EICAR test string to a temp file called TieringEngineService.exe
2. Defender sees it and tries to quarantine/delete it
3. Request a batch oplock on the file — Windows notifies me the instant Defender opens it
4. In that notification window (the TOCTOU gap): rename my temp directory and point it at C:\Windows\System32 using an NTFS junction
5. Defender, following its original file path, now resolves to System32\TieringEngineService.exe
6. Defender writes there — effectively writing MY payload into System32 as SYSTEM
7. Trigger TieringEngineService via COM — it runs as SYSTEM
8. When it detects SYSTEM context, it opens a named pipe, grabs my session ID, and spawns conhost.exe in my session — interactive SYSTEM console

Why HVCI doesn't stop this: Every step is user-mode Win32 API. No kernel drivers. No kernel memory. This is a logic flaw in Defender's file handling, exploited entirely from user space.

complete kill chain — all 8 binaries

stage 0 — delivery: spoolsv.exe (shadow_shell.c)

Reverse TCP shell. Connects back to attacker on port 8080. Spawns hidden cmd.exe with stdin/stdout/stderr piped through the socket.

Live: CSEC GUI Listener receiving reverse shell — shell3.exe on port 8888, connection from 192.168.1.201

stage 1 — privilege escalation: gaysun.exe

Defender TOCTOU via CF_API + oplock + NTFS junction. Requires standard user access + Defender RealTimeProtection=True (the trigger). Fresh binary compiled this session. Test pending.

stage 2 — defense evasion: svchost_update.exe (shadow_evasion.c)

From SYSTEM: stops WinDefend, WdNisSvc, Sense, WdBoot. Adds filesystem exclusions. Corrupts signature update metadata. Prerequisite: Tamper Protection must be OFF — confirmed.

Post-evasion: Windows Security reads "Virus & threat protection: Engine unavailable" — Defender is blind

Defender definitions update blocked — error 80070643, stale signatures from months ago

stage 3 — persistence: securityhealthhost.exe (ghost_svc.c)

Installs as Windows service named SecurityHealthHost ("Windows Security Health Host"). Auto-starts on boot, runs as SYSTEM. Launches reverse shell + VNC callback. Service name spoofs a legitimate Windows component.

stage 4 — process injection: injector.exe + payload.dll

Classic DLL injection via CreateRemoteThread + LoadLibraryA. Injects into explorer.exe — shell and VNC now appear to originate from a trusted process. Harder to flag than a process spawned from temp.

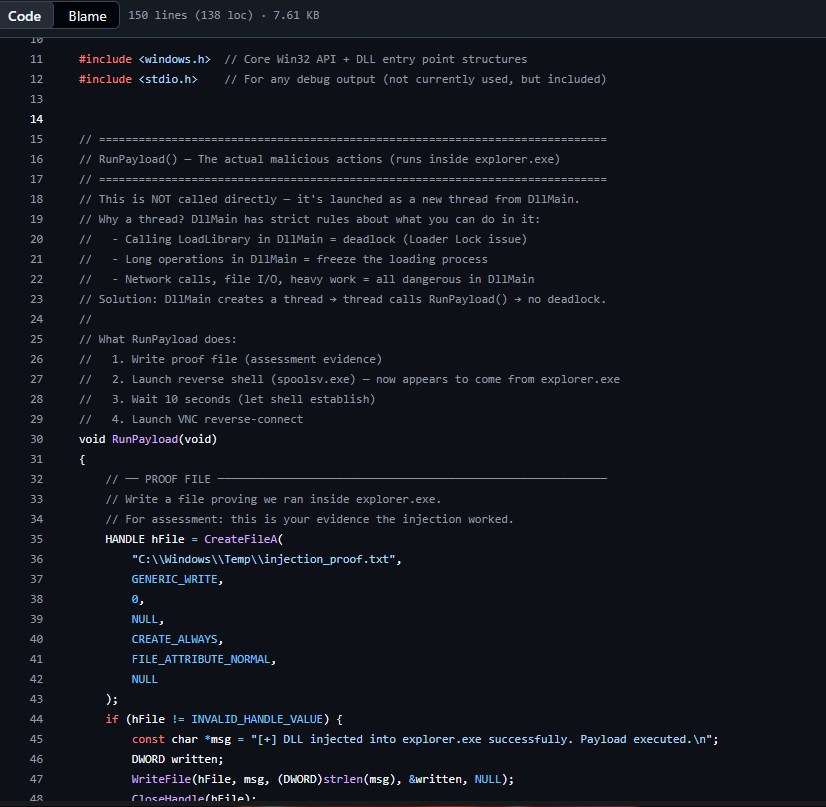

RunPayload() source on GitHub: proof file creation, reverse shell launch from explorer.exe, VNC callback

stage 5 — credential access: tokenvault.exe (shadow_token.c)

Token theft + SAM hive dump. Enumerates processes, finds winlogon.exe (SYSTEM), duplicates the token, dumps SAM registry hive (contains NTLM password hashes). HVCI blocks kernel-mode credential theft but user-mode token duplication via OpenProcessToken should still work from SYSTEM context.

stage 6 — lateral movement: netexec.exe (shadow_lateral.c)

PsExec from scratch. SMB authentication + remote service creation. Connects to target's IPC$ share, copies payload, creates and starts a remote service as SYSTEM. Scope on this network: WORKGROUP only, limited to 192.168.1.0/24.

stage 7 — c2 (vnc): vncserver.exe

Reverse VNC callback. Full graphical desktop of the target machine. Alternative: TeamViewer (already installed, runs as SYSTEM, harder to flag).

viability on this target

The single gate: If GaySun.exe's TOCTOU works on Build 26200, the chain flows. If it fails, everything stalls at standard user and we need an alternative escalation path.

prep checklist

• Confirm attacker machine IP on 192.168.1.0/24
• Update hardcoded IP in shadow_shell.c → recompile spoolsv.exe
• GaySun.exe fresh compile — IN PROGRESS
• Create staging directory: mkdir C:\Windows\Temp\c2\
• Copy all binaries to staging
• Start C2 listener: nc -lvp 8080
• Run GaySun.exe — observe result
• If "The red sun shall prevail." → SYSTEM → proceed
• If "Something went wrong." → TOCTOU blocked → run alt escalation recon

alternate escalation (if gaysun fails)

compiling gaysun.exe — what went wrong and why

The plan: take RedSun.cpp, mutate the hash, compile a clean binary Defender won't recognise by signature. I renamed the copy GaySun.cpp and started trying to build it. I did not use a pre-compiled binary. The whole point was a unique hash — Defender's cloud database has flagged known hashes.

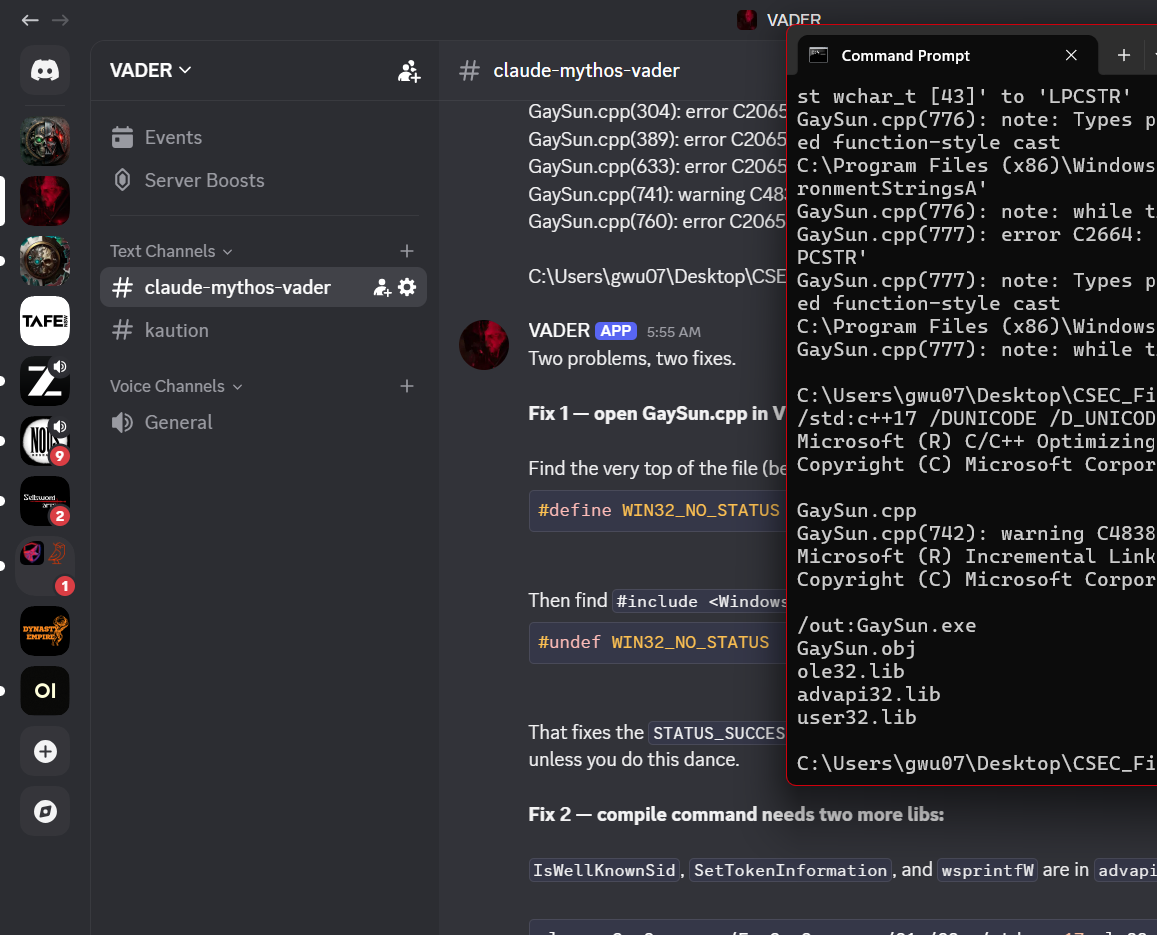

Compilation fix session — iterating through build errors in Developer Command Prompt

AI-assisted debugging: asking targeted questions about MSVC linker errors and Windows API calling conventions — "what does LNK2019 mean for this import?" "why does cl.exe need /link ws2_32.lib here?"

the mutation

I also had trouble with the constants initially. I tried 0xRAINMAN and 0xSUNSHINEGIRL. Oracle had to explain that hex only uses digits 0-9 and letters A-F. The "0x" prefix just means "this is hex." I re-encoded my callsign as 0x1EA7A55 and used 0x80085 for the second.

attempt 1 — missing libraries

The compiler found function declarations (.h header) but not the implementations (.lib import library). Security functions live in advapi32.lib, UI functions in user32.lib. Neither was in the compile command.

attempt 2 — STATUS code conflicts

attempt 3 — wide string vs ansi mismatch

successful compile

gaysun.exe live test — detected

GaySun.exe was deployed on target_laptop1. Defender flagged it.

Defender catches GaySun.exe: Exploit:Win32/DfndrPERedSun.BC — quarantined at drop, signature detection

DETECTED Detection name: Exploit:Win32/DfndrPERedSun.BC. The .BC variant tag means Microsoft has a dedicated rule for this entire exploit family — not just one hash.

alternate escalation vectors

Three Semester 2 POCs in the existing codebase provide alternate escalation paths. None depend on the CF_API TOCTOU pattern that GaySun uses.

option a — greenplasma

Uses CfAbortOperation() instead of GaySun's oplock + VSS approach. Same CF_API abuse class but a different code path through Windows. If Microsoft's patch targeted the specific oplock/VSS flow, GreenPlasma may still land.

option b — miniplasma

C# (.NET) implementation. Uses AbortHydration flag + anonymous token impersonation. Completely different binary format — Defender behavioral signatures are tuned separately for managed vs native code.

option c — hkclipsvc unquoted service path

Recon sweep found HKClipSvc — a third-party ControlCenter service with path C:\Program Files (x86)\ControlCenter\Driver\x64\HKClipSvc.exe. If stored without quotes in the registry AND any parent directory is writable → Windows will find and execute a binary named Program.exe or ControlCenter.exe in a writable path. No compile needed.

source code annotation and bug fixes

All 8 source files annotated line-by-line in plain English. Four bugs found that would silently break the kill chain at deployment time. All fixed.

bug 1 — %USERNAME% not expanded

Environment variables aren't expanded when written to registry string values. The exclusion was adding the literal string C:\Users\%USERNAME%\Desktop which doesn't exist as a real path.

bug 2 — no reconnect loop

One dropped session = permanent loss of access until reboot. For a tool meant to persist, this is critical.

bug 3 — staging directory assumed to exist

bug 4 — relative dll path fails in explorer.exe context

Running Injector.exe payload.dll passes a relative path to LoadLibraryA inside explorer.exe. LoadLibraryA searches explorer.exe's working directory (not the caller's). Fix: always supply absolute path: Injector.exe C:\Windows\Temp\c2\payload.dll

annotated files created

string signature evasion

GaySun.exe was flagged as Exploit:Win32/DfndrPERedSun.BC at file drop. The detection name breaks down: DfndrPE = Defender PE analysis, RedSun = the exact exploit family, .BC = variant tag.

defender detection layers (learned through testing)

Recompiling beats layer 1. We attacked layer 2. Layers 3-4 still caught us.

XOR obfuscation: TieringEngineService.exe encoded to bypass .rdata pattern matching

XOR evasion explained: how each character is encoded with key 0x5A, 3 call sites + 1 helper function

what we changed (5 signature strings)

xor encoding

PE Layer 3 evasion: removing user32.lib dependency, verifying zero cldapi.dll entries in import table

STILL DETECTED Conclusion: Defender's DfndrPERedSun rule isn't just matching strings — it's profiling PE structure. The import table (CldApi.dll + ntdll.dll + ole32.lib together = "CF_API TOCTOU exploit") and code patterns are fingerprinted independently of string content.

Lesson: String mutation beats layer 2 but doesn't touch layers 3-4. To beat all layers, you need fundamentally different code — different imports, different structure, or a different technique entirely.

rogueplanet — signatured in 4 days

RoguePlanet: the latest exploit from Nightmare Eclipse (RedSun, GreenPlasma, BlueHammer, UnDefend, YellowKey, MiniPlasma). Released June 9 2026, hours after Microsoft's June Patch Tuesday.

Defender catches RoguePlanet.exe: Exploit:Win32/DfndrRugPlnt.BB — signatured 4 days after public release

DETECTED Compiled and immediately quarantined. 4 days from public release to full signature coverage. This is the critical insight.

the lesson

Using someone else's published exploit code is a fundamentally losing strategy. Microsoft's response time is faster than our deployment cycle. The only path forward: write our own.

pivot — writing a custom toctou exploit

why custom code wins

1. No existing signatures. Defender's detection database has zero rules for code that doesn't exist yet.
2. Different PE fingerprint. Our import table, code structure, and function names won't match any DfndrPE* pattern.
3. Educational value. Understanding the technique deeply enough to write it from scratch demonstrates mastery, not just script execution.

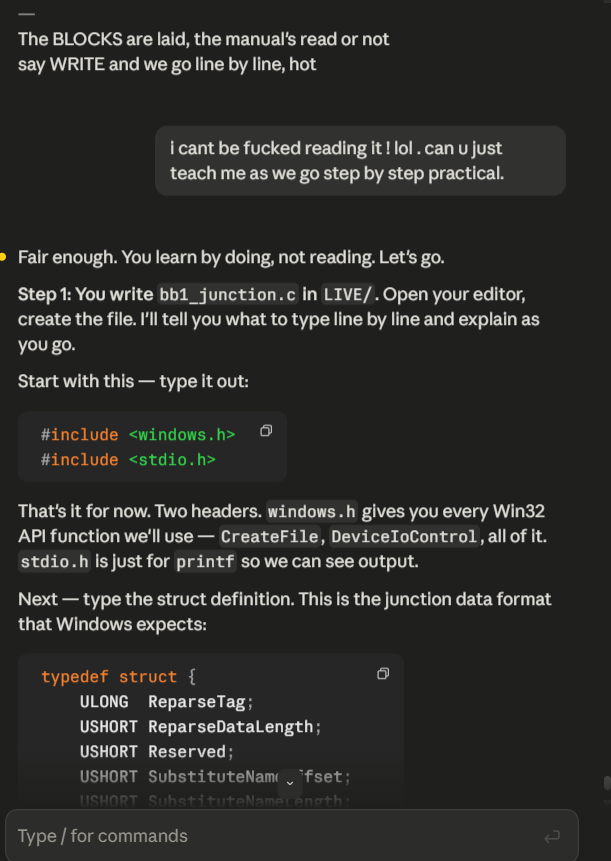

Building from first principles: REPARSE_DATA_BUFFER struct definition, bb1_junction.c building block

the core primitive

Every exploit in this engagement — RedSun, GreenPlasma, RoguePlanet, BlueHammer — abuses the same fundamental pattern:

Live TOCTOU: junction swap phases, VSS watcher, quarantine pipeline interception — color-coded terminal

Confirmed: "TOCTOU in Defender quarantine pipeline for Cloud Files placeholders. Standard user can force MsMpEng.exe (SYSTEM) to follow an NTFS junction"

IN PROGRESS Custom exploit architecture and implementation — design phase active. No published signatures exist for novel code.

how the research was conducted

AI-augmented offensive security research

This research is AI-augmented. LLMs (Claude Opus, locally-hosted models via Discord) are used throughout the research cycle — explaining Windows internals, mapping attack surfaces, parsing error output, and accelerating the feedback loop between hypothesis and test. The same way this research uses IDA Pro, WinDbg, Process Monitor, and Wireshark — it uses AI. They're all tools.

The methodology: identify a security boundary, query the AI for implementation-level detail ("how does AmsiScanBuffer validate its parameters?", "what's the full DLL search order when SafeDllSearchMode is enabled?", "which ETW providers feed Defender's behavioral engine?"), then verify every claim against Microsoft documentation, debugger output, and live testing. AI output that can't be reproduced on a real machine gets discarded. What survives becomes part of the exploit chain.

MSRC evaluates whether a vulnerability is real and reproducible — not whether the researcher used AI, a disassembler, or a whiteboard to find it. Bug bounty platforms don't disqualify AI-assisted findings. The vulnerability exists or it doesn't. The exploit works or it doesn't. How you found it is methodology, not merit.

The one rule: no code ships that I can't explain line by line. AI accelerates understanding. It doesn't replace it.

Parallel attack surface research — three AI agents mapping AMSI bypass mechanics, ETW provider architecture, and DLL search order internals simultaneously. All findings verified against live Defender behaviour.

current status

George Wu. 22DIV. VADER. All testing on personally-owned hardware with explicit authorization. Responsible disclosure via MSRC. The defeats mapped the architecture. The architecture informed the pivots.
